AutoGRAPH-INFO MINI: SPECIFICATIONS
SHORT DESCRIPTION

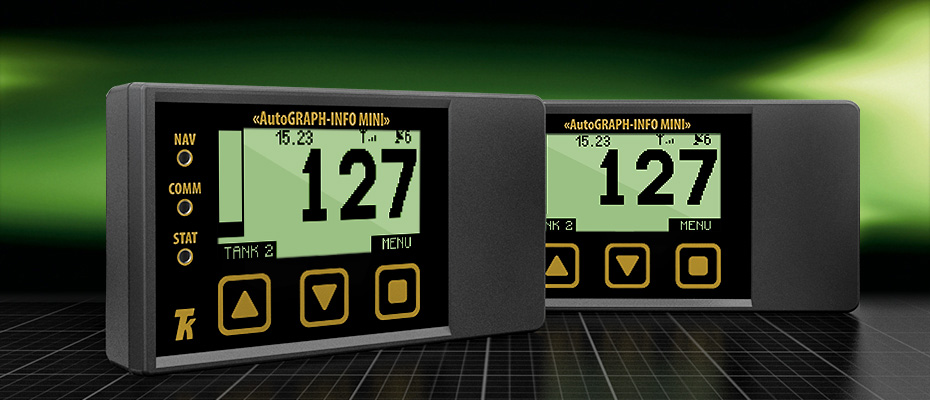

AutoGRAPH-INFO MINI display allows indication of up to 8 fuel level sensors supporting LLS protocol. In addition, volume calibration tables of the sensors can be recorded in the display. Also an option for low fuel level threshold setup (in %) as well as fuel level indication in a graphical form are provided.
AutoGRAPH-INFO MINI is equipped with a digital output intended for control of different actuators and external devices. e.g. for LED turning on.
Custom settings are protected by a password from unauthorized access.
Connected to AutoGRAPH on-board controller, AutoGRAPH-INFO MINI provides advanced features such as:
• connection of an alert button to digital input and operative notification of a dispatcher about the alert button press;
• display of a fueler operation data;
• reception and transmission of text messages in order to provide communication between a driver and a dispatcher for operative vehicle control;
• display of different technical information on a vehicle received from the AutoGRAPH on-board controller.
AutoGRAPH-INFO MINI is equipped with a digital output intended for control of different actuators and external devices. e.g. for LED turning on.
Custom settings are protected by a password from unauthorized access.
Connected to AutoGRAPH on-board controller, AutoGRAPH-INFO MINI provides advanced features such as:
• connection of an alert button to digital input and operative notification of a dispatcher about the alert button press;
• display of a fueler operation data;
• reception and transmission of text messages in order to provide communication between a driver and a dispatcher for operative vehicle control;
• display of different technical information on a vehicle received from the AutoGRAPH on-board controller.
TECHNICAL SPECIFICATION
| PARAMETERS | VALUE |
|---|---|
| Screen resolution, pixels | 128 x 64 |
| Non-volatile internal memory, records | Up to 270.000 |
| Connection to a PC | USB 2.0 |
| RS-485 bus (TIA / EIA-485-A) | 1 |
| Digital inputs number, pc | 1 |
| Digital outputs number, pc | 1 |
| Operating voltage, V | 10...60 |
| Power consumption at 12 VDC, mA | 50 |
| Temperature range, °С | -40...+85 |
| Weight, g | 90 |
| Dimensions, mm | 105 Ñ… 57 Ñ… 18 |
| Average life time, years | 10 |
SCOPE OF SUPPLY
| â„– | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | AutoGRAPH-INFO MINI informational display | 1 pc. |
| 2 | Interface cable | 1 pc. |
| 3 | Fuse with holder, 1A | 1 pc. |
| 4 | Warranty certificate | 1 pc. |
INTERFACE CONNECTOR
AutoGRAPH-INFO MINI informational display is supplied with an interface cable intended for connection of the device to external units and power supply circuit. The interface cable is designed as separate wires of different colours.
| â„– | WIRE COLOUR | ASSIGNMENT | |
|---|---|---|---|
| 1 | RED | +Vin | |
| 2 | BLACK | -Vin | |
| 3 | GRAY | Digital output (OC)* 0.5 Ð | |
| 4 | YELLOW | Digital input (active low) | |
| 5 | ORANGE WITH A WHITE STRIPE | RS-485 (A) | |
| 6 | BROWN WITH A WHITE STRIPE | RS-485 (B) | |
1 * Open collector.
WARRANTY
AUTOGRAPH-INFO MINI carries 36-months warranty from the day of sale but no longer than 40 months from the production date.
Complete warranty terms and conditions are given in the Warranty Card supplied with the device and in the User Manual of the device.
The issued Warranty Card shall be considered a ground for warranty repair and service of the product. The Warranty Card must be fully completed by the retailer and customer (dated, signed and stamped). Otherwise it is considered to be invalid.
Complete warranty terms and conditions are given in the Warranty Card supplied with the device and in the User Manual of the device.
The issued Warranty Card shall be considered a ground for warranty repair and service of the product. The Warranty Card must be fully completed by the retailer and customer (dated, signed and stamped). Otherwise it is considered to be invalid.
