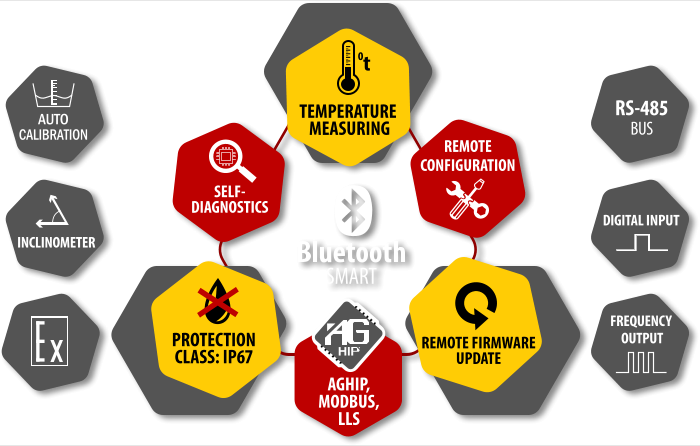

TKLS KEY FEATURES AND BENEFITS
- TKLS fuel level sensor is equipped with in-built Bluetooth Low Energy module, which helps to accomplish wireless diagnoctics and setting the sensor up with mobile devices on iOS and Android without cable connection break
- Unique function of automatic calibrator management is used to simplify the process of fuel capacity calibration
- TKLS fuel level sensor can produce self-diagnostics, present error report and also record inner event log
- Safety password can be used in TKLS fuel level sensor to prevent unauthorized setting changes
- A wide range of RS-485 output protocols: LLS, ModBus, AGHIP (AutoGRAPH Hardware Interface Protocol)
- Unique measurements filtering algorithm on the basis of data about inclination angles performed by built-in accelerometer gives an opportunity to get actual information about fuel level, refillings and drains in different usage conditions
- TKLS fuel level sensor provides a temperature measuring and thermal compensation capability
- Special coating of the measuring probes providing high rate of anticorrosion protection
- For easy installation TKLS fuel level sensor uses the most common SAE 5-bolt mounting
- Protection class – IP69K
- TKLS fuel level sensor carries E-mark (E8) approval as well as Conformity certificates of EAC
